X-Ray, CT Scan, or MRI, Differences, Working Principles, and When Each Medical Scan Is Required
_562565013.jpg)
When unexplained pain, sudden sports injuries, or deep internal ailments arise, medical specialists rely on advanced diagnostic imaging to evaluate internal anatomy before prescribing medical or surgical care. While standard X-rays, Computed Tomography (CT) scans, and Magnetic Resonance Imaging (MRI) all create detailed visual representations of internal physiological structures, their underlying physics, diagnostic resolutions, and clinical indications differ fundamentally. Choosing the appropriate diagnostic modality depends directly on whether an examining physician needs to inspect dense skeletal fractures, cross-sectional internal organ trauma, or intricate soft-tissue networks like neural pathways and joint ligaments.
What Is an X-Ray and When Do Doctors Recommend It?
Conventional radiography remains the frontline, rapid diagnostic tool across emergency centers and outpatient clinics:
Underlying Mechanism: Radiography uses low, controlled doses of ionizing electromagnetic radiation that pass through bodily tissues and project shadowed 2D silhouettes onto specialized digital detector plates.
Primary Diagnostic Focus: Dense structures like bone mineral absorb high amounts of radiation and appear bright white, making X-rays the standard initial procedure to detect acute bone fractures, dislocations, dental roots, and joint degeneration.
Chest and Respiratory Assessment: A routine chest X-ray helps physicians quickly identify lung consolidations, pneumonia, pleural fluid accumulation, cardiomegaly (enlarged heart), and foreign body ingestions.
Speed and Resolution Limits: While fast, affordable, and widely accessible, conventional X-rays produce flat two-dimensional images that overlap anatomical structures and provide poor visibility of soft tissues, internal cartilage, and subtle muscular tears.
What Is a CT Scan and When Is It Indispensable?
Computed Tomography bridges the diagnostic gap between flat radiography and advanced volumetric cross-sectional evaluations:

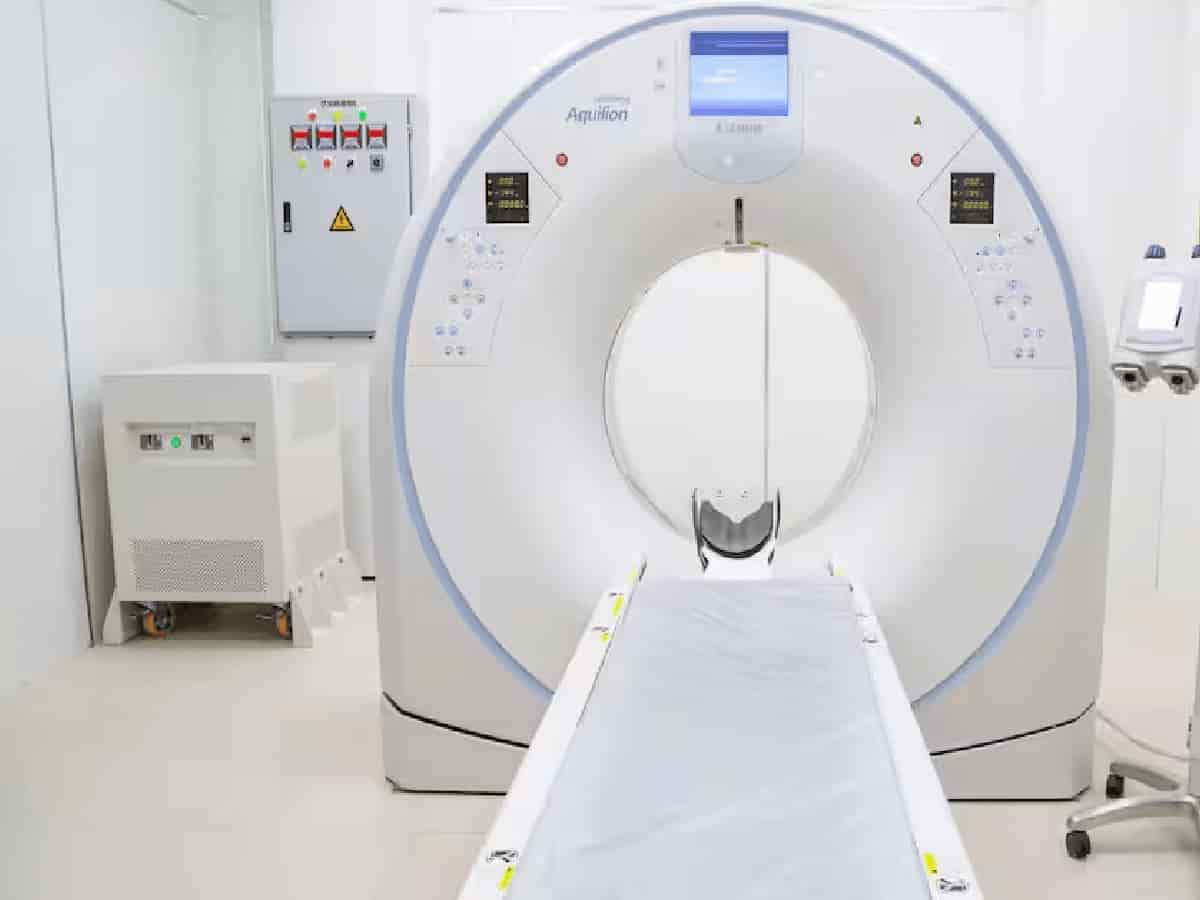

Underlying Mechanism: CT scans utilize a motorized X-ray tube that rotates around the patient's body inside a gantry ring, capturing multiple thin photographic slices that specialized computer software compiles into detailed 3D cross-sectional cross-sections.
Emergency and Trauma Medicine: Because modern multi-detector CT scanners deliver comprehensive whole-body cross-sections within seconds, they represent the gold standard in trauma centers to identify acute intracranial hemorrhage, skull fractures, abdominal organ lacerations, and aortic dissections.
Oncology and Deep Infection Detection: Oncologists and surgeons depend on contrast-enhanced CT scans to identify the size, staging, and vascular margins of complex tumors, pulmonary embolisms, and deep internal abscesses.
Radiation Consideration: Because CT scans compile hundreds of rotational cross-sections, they expose the body to higher cumulative doses of ionizing radiation compared to standard single-exposure X-rays, requiring judicious clinical justification.
What Is an MRI and When Is It the Gold Standard?
Magnetic Resonance Imaging delivers unmatched anatomical precision without exposing the human body to ionizing radiation:
Radiation-Free Physics: An MRI machine functions by using powerful superconducting magnets and radiofrequency (RF) energy pulses that temporarily align hydrogen protons within the body’s water molecules, recording the energy released as protons return to baseline to render high-contrast images.
Soft Tissue and Neurological Imaging: MRI is the premier diagnostic modality for visualizing the central nervous system, delivering exquisite structural views of the brain, spinal cord, herniated discs, cranial nerve tracts, and white matter lesions associated with conditions like multiple sclerosis.
Musculoskeletal Ligaments and Tendons: Orthopedic specialists use MRIs to inspect soft musculoskeletal architecture, including torn knee ligaments (such as ACL and meniscus tears), shoulder rotator cuff injuries, cartilage degradation, and subtle muscle tears.
Procedure Duration and Sensory Environment: Unlike a rapid CT scan, an MRI takes anywhere from 20 to 60 minutes per anatomical region and requires the patient to remain completely still inside a narrow, humming magnetic bore.
Comparative Guide: Which Diagnostic Scan Is Best for Your Condition?
No individual scan serves as a universal diagnostic solution; the choice depends on clinical presentation, anatomy, and patient safety factors:
Skeletal Fractures vs Soft-Tissue Tears: A suspected broken forearm requires an X-ray; a knee joint with intact bones but severe instability typically requires an MRI to assess ligament and cartilage integrity.
Trauma Speed vs Neural Detail: In acute vehicular trauma or suspected hemorrhagic stroke, an emergency head CT is performed first within minutes; a patient with lingering vertigo, memory changes, or spinal nerve numbness is referred for a non-urgent MRI.
Critical Safety Precautions: Patients must always disclose pregnancy to their treating medical team, as ionizing radiation from X-rays and CT scans requires lead shielding or alternative imaging strategies.
Implanted Devices and Metal Restrictions: Due to the powerful magnetic field inside an MRI suite, individuals with cardiac pacemakers, cochlear implants, surgical clips, neurostimulators, or metallic foreign bodies must undergo strict screening to avoid life-threatening displacement or thermal injuries.
